Hydraulic-Cylinder Linkages
Use the published HCR12CE dimensions and mounting geometry to review cylinder-side linkage fit.
Size 80 / M64x3 thread / 170 mm outer diameter / 270 mm lengthROD END / HEIM JOINT

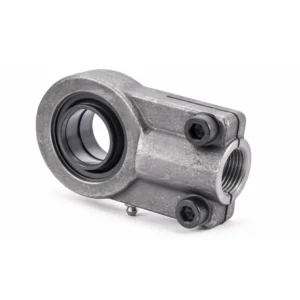

HCR12CE-80 Hydraulic Rod End Bearing, 80 mm Size
Part No.: HCR12CE-80
· Male & female version available
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
Size 80 mm
Thread pitch M64x3
Diameter 90 mm
Dynamic load 400 kN
Static load 695 kN
Tilt angle 4°
Bearing Shell
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
Inner Ring
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
Hydraulic Rod End Bearing HCR12CE Product Overview
HCR12CE-80 is a metric hydraulic-cylinder rod end bearing for larger cylinder-side linkage assemblies. It combines a GS400 nodular cast iron housing with a bearing shell and inner ring made from 100Cr6 / AISI 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment. It uses a right-hand M64x3 thread.
The size-80 configuration has a 170 mm outer diameter, 80 mm inner ring width, 67 mm bearing width, 180 mm medium length, 90 mm diameter, 86 mm thread length, 270 mm overall length. Published performance values are 55-142 μm internal clearance, 400 kN dynamic load rating, 695 kN static load rating, 148 mm collar diameter, 4° tilt angle, 410 Nm torque, and approximately 13000 g weight.
Hydraulic grease nipple to DIN 71412. The stated operating range is -50°C to +150°C. Confirm the cylinder geometry, side-load condition, clearance, lubrication access, and final material requirements against the HCR12CE specification before production release.
Size Chart
Hydraulic Rod End Bearing HCR12CE Series — Full Size Range
All available sizes in the Hydraulic Rod End Bearing HCR12CE series. Can’t find your size? Contact us for custom dimensions.
| Part no. | [D] Size | [G] Thread pitch | [A] Outer diameter (mm) | [B] Inner ring width (mm) | [M] Bearing width (mm) | [F] Medium length (mm) | [J] Diameter (mm) | [GL] Thread length (mm) | [L] Length (mm) | Internal clearance (μm) | [M1] Width (mm) | Dynamic load rating (kN) | Static load rating (kN) | [K] Collar diameter (mm) | Tilt angle (°) | Torque (Nm) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCR12CE-12 | 12 | M12x1,25 | 32 | 12 | 11 | 38 | 16 | 17 | 54 | 23-68 | 15 | 10.8 | 24.5 | 32 | 4 | 6 | 110 |
| HCR12CE-16 | 16 | M14x1,5 | 40 | 16 | 13 | 44 | 21 | 19 | 64 | 30-82 | 15 | 17.6 | 36.5 | 40 | 4 | 10 | 200 |
| HCR12CE-20 | 20 | M16x1,5 | 47 | 20 | 17 | 52 | 25 | 23 | 77 | 30-82 | 19 | 30 | 48 | 47 | 4 | 25 | 350 |
| HCR12CE-25 | 25 | M20x1,5 | 58 | 25 | 22 | 65 | 30 | 29 | 96 | 37-100 | 19 | 48 | 78 | 54 | 4 | 25 | 620 |
| HCR12CE-32 | 32 | M27x2 | 71 | 32 | 28 | 80 | 38 | 37 | 118 | 37-100 | 22 | 67 | 114 | 66 | 4 | 49 | 1150 |
| HCR12CE-40 | 40 | M33x2 | 90 | 40 | 33 | 97 | 47 | 46 | 146 | 43-120 | 26 | 100 | 204 | 80 | 4 | 49 | 2180 |
| HCR12CE-50 | 50 | M42x2 | 109 | 50 | 41 | 120 | 58 | 57 | 179 | 43-120 | 32 | 156 | 310 | 96 | 4 | 86 | 3960 |
| HCR12CE-63 | 63 | M48x2 | 136 | 63 | 53 | 140 | 70 | 64 | 213 | 55-142 | 38 | 255 | 430 | 114 | 4 | 210 | 6800 |
| HCR12CE-70 | 70 | M56x2 | 155 | 70 | 57 | 160 | 80 | 76 | 245 | 55-142 | 42 | 315 | 540 | 135 | 4 | 210 | 9600 |
| HCR12CE-80 | 80 | M64x3 | 170 | 80 | 67 | 180 | 90 | 86 | 270 | 55-142 | 48 | 400 | 695 | 148 | 4 | 410 | 13000 |
| HCR12CE-90 | 90 | M72x3 | 185 | 90 | 72 | 195 | 100 | 91 | 296 | 55-142 | 52 | 490 | 750 | 160 | 4 | 410 | 19100 |
| HCR12CE-100 | 100 | M80x3 | 211 | 100 | 85 | 210 | 110 | 96 | 322 | 65-165 | 62 | 610 | 1060 | 178 | 4 | 710 | 25000 |
| HCR12CE-110 | 110 | M90x3 | 235 | 110 | 88 | 235 | 125 | 106 | 364 | 65-165 | 62 | 655 | 1200 | 190 | 4 | 710 | 32000 |
| HCR12CE-125 | 125 | M100x3 | 265 | 125 | 103 | 260 | 135 | 113 | 406.5 | 65-165 | 72 | 950 | 1430 | 200 | 4 | 710 | 46000 |
| HCR12CE-160 | 160 | M125x4 | 326 | 160 | 130 | 310 | 165 | 126 | 488 | 65-192 | 82 | 1370 | 2200 | 250 | 4 | 710 | 82500 |
| HCR12CE-200 | 200 | M160x4 | 418 | 200 | 162 | 390 | 215 | 161 | 620 | 65-192 | 102 | 2120 | 3650 | 320 | 4 | 1500 | 168000 |
Quality Control
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Applications
Where Hydraulic Rod End Bearing HCR12CE Rod Ends Are Used
Related Products
All Products →More from the Hydraulic Rod End Bearing HCR12CE Series
Get a Quote
Request a Quote for the Hydraulic Rod End Bearing HCR12CE Series
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
Email
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
FAQ
Hydraulic Rod End Bearing HCR12CE Frequently Asked Questions
HCR12CE シリーズとは何ですか？
HCR12CE は、寸法、クリアランス、負荷、発注データが公開されているメートル法油圧シリンダー ロッドエンド ベアリング シリーズです。
HCR12CE の公開サイズはどれですか？
公開されている HCR12CE の仕様表には、記載の範囲で16サイズが含まれます。
HCR12CE にはどの材質が使われていますか？
ベアリング シェルと内輪：100Cr6 / AISI 52100 ベアリング鋼、焼入れ・研削、リン酸塩処理と二硫化モリブデン処理。…
HCR12CE はどのように給脂しますか？
サイズ12は再給脂不可です。サイズ16〜200は DIN 71412 の油圧グリースニップルを使用します。
HCR12CE に記載されている温度範囲は何ですか？
HCR12CE のページには、記載の材質と潤滑構成での動作範囲 -50°C〜+150°C が示されています。
