Hydraulic-Cylinder Linkages
Use the published HCR20N dimensions and mounting geometry to review cylinder-side linkage fit.
Size 50 / M45x1,5 thread / 116 mm outer diameter / 168 mm lengthROD END / HEIM JOINT

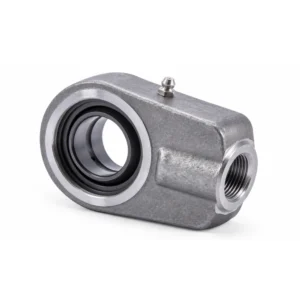

HCR20N-50 Hydraulic Rod End Bearing, 50 mm Size
Part No.: HCR20N-50
· Male & female version available
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
Size 50 mm
Thread pitch M45x1,5
Diameter 61 mm
Dynamic load 156 kN
Static load 365 kN
Tilt angle 6°
Bearing Shell
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
Inner Ring
100cr6 / aisi 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
Hydraulic Rod End Bearing HCR20N Product Overview
HCR20N-50 is a metric hydraulic-cylinder rod end bearing for compact cylinder-side linkage assemblies. It combines a Forged, heat-treated C45 / AISI 1045 steel housing with a bearing shell and inner ring made from 100Cr6 / AISI 52100 bearing steel, hardened and ground; phosphate and molybdenum-disulfide surface treatment. It uses a right-hand M45x1,5 thread.
The size-50 configuration has a 116 mm outer diameter, 35 mm inner ring width, 40 mm bearing width, 105 mm medium length, 61 mm diameter, 46 mm thread length, 168 mm overall length. Published performance values are 43-120 μm internal clearance, 156 kN dynamic load rating, 365 kN static load rating, 90 mm collar diameter, 6° tilt angle, and approximately 3800 g weight.
Hydraulic grease nipple to DIN 71412. The stated operating range is -50°C to +150°C. Confirm the cylinder geometry, side-load condition, clearance, lubrication access, and final material requirements against the HCR20N specification before production release.
Size Chart
Hydraulic Rod End Bearing HCR20N Series — Full Size Range
All available sizes in the Hydraulic Rod End Bearing HCR20N series. Can’t find your size? Contact us for custom dimensions.
| Part no. | [D] Size | [G] Thread pitch | [A] Outer diameter (mm) | [B] Inner ring width (mm) | [M] Bearing width (mm) | [F] Medium length (mm) | [J] Diameter (mm) | [GL] Thread length (mm) | [L] Length (mm) | Internal clearance (μm) | [M1] Width (mm) | Dynamic load rating (kN) | Static load rating (kN) | [K] Collar diameter (mm) | Tilt angle (°) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCR20N-20 | 20 | M16x1,5 | 56 | 16 | 19 | 50 | 25 | 17 | 80 | 30-82 | 17 | 30 | 81.1 | 46 | 9 | 450 |
| HCR20N-25 | 25 | M16x1,5 | 56 | 20 | 23 | 50 | 25 | 17 | 80 | 37-100 | 21 | 48 | 72 | 46 | 7 | 490 |
| HCR20N-30 | 30 | M22x1,5 | 64 | 22 | 28 | 60 | 32 | 23 | 94 | 37-100 | 26 | 62 | 106 | 50 | 6 | 760 |
| HCR20N-35 | 35 | M28x1,5 | 78 | 25 | 30 | 70 | 40 | 29 | 112 | 37-100 | 28 | 80 | 153 | 66 | 6 | 1260 |
| HCR20N-40 | 40 | M35x1,5 | 94 | 28 | 35 | 85 | 49 | 36 | 135 | 43-120 | 33 | 100 | 250 | 76 | 7 | 2150 |
| HCR20N-50 | 50 | M45x1,5 | 116 | 35 | 40 | 105 | 61 | 46 | 168 | 43-120 | 37 | 156 | 365 | 90 | 6 | 3800 |
| HCR20N-60 | 60 | M58x1,5 | 130 | 44 | 50 | 130 | 75 | 59 | 200 | 43-120 | 46 | 245 | 400 | 120 | 6 | 6200 |
| HCR20N-70 | 70 | M65x1,5 | 154 | 49 | 55 | 150 | 86 | 66 | 232 | 55-142 | 51 | 315 | 540 | 130 | 6 | 9830 |
| HCR20N-80 | 80 | M80x2 | 176 | 55 | 60 | 170 | 105 | 81 | 265 | 55-142 | 55 | 400 | 670 | 160 | 6 | 13970 |
| HCR20N-90 | 90 | M100x2 | 206 | 60 | 65 | 210 | 124 | 101 | 322 | 55-142 | 60 | 490 | 980 | 180 | 5 | 23500 |
| HCR20N-100 | 100 | M110x2 | 231 | 70 | 70 | 235 | 138 | 111 | 360 | 65-165 | 65 | 610 | 1120 | 200 | 7 | 32000 |
| HCR20N-110 | 110 | M120x3 | 266 | 70 | 80 | 265 | 152 | 125 | 407 | 65-165 | 74 | 655 | 1700 | 220 | 6 | 41000 |
| HCR20N-120 | 120 | M130x3 | 340 | 85 | 90 | 310 | 172 | 135 | 490 | 65-165 | 84 | 950 | 2900 | 257 | 6 | 72000 |
Quality Control
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Applications
Where Hydraulic Rod End Bearing HCR20N Rod Ends Are Used
Related Products
All Products →More from the Hydraulic Rod End Bearing HCR20N Series
Get a Quote
Request a Quote for the Hydraulic Rod End Bearing HCR20N Series
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
Email
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
FAQ
Hydraulic Rod End Bearing HCR20N Frequently Asked Questions
HCR20N シリーズとは何ですか？
HCR20N は、寸法、クリアランス、負荷、発注データが公開されているメートル法油圧シリンダー ロッドエンド ベアリング シリーズです。
HCR20N の公開サイズはどれですか？
公開されている HCR20N の仕様表には、記載の範囲で13サイズが含まれます。
HCR20N にはどの材質が使われていますか？
ベアリング シェルと内輪：100Cr6 / AISI 52100 ベアリング鋼、焼入れ・研削、リン酸塩処理と二硫化モリブデン処理。…
HCR20N はどのように給脂しますか？
耐用期間中のメンテナンスアクセスのための DIN 71412 準拠油圧グリースニップル。
HCR20N に記載されている温度範囲は何ですか？
HCR20N のページには、記載の材質と潤滑構成での動作範囲 -50°C〜+150°C が示されています。
HCR20N の見積もりには何を提供すればよいですか？
必要なサイズ、シリンダー側の取付ジオメトリまたは図面、デューティーサイクル情報、および給脂や材質に関する要件をお知らせください。
