AIM Series — Axial Small Ball Joints

AIM Series
Axial Ball Joints

Metric Thread · Axial Pull-Out Loading · Zinc-Plated Carbon Steel Socket · Hardened Steel Ball

8

全仕様範囲

30-100 N

Pull-Out Force Range

AIM axial ball joint product overview

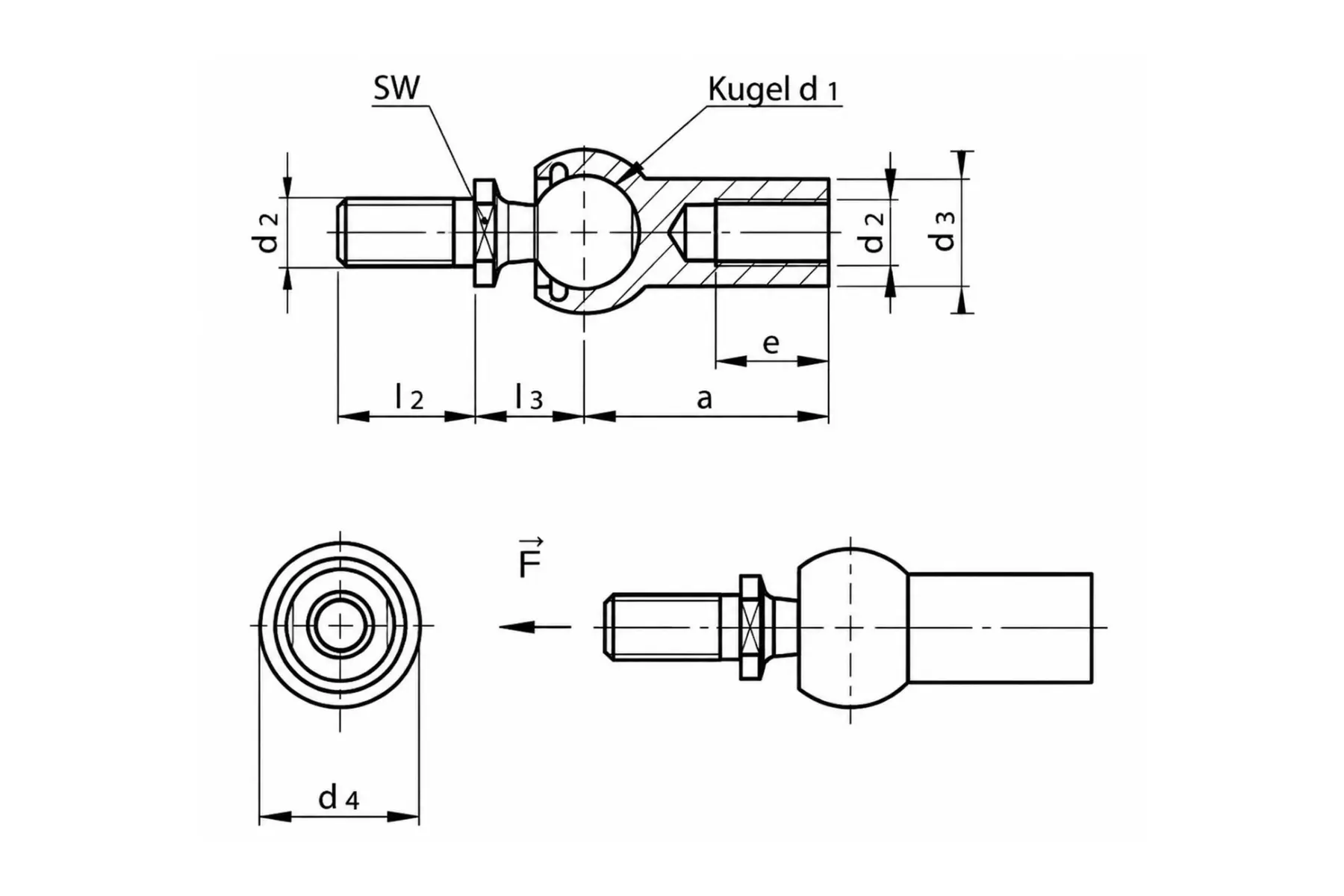

AIM axial ball joint technical drawing

任意の B

任意の N

ねじ d2

ボール d1

ポリウレタン

ポリウレタン	ボール d1MM	ねじ d2METRIC	a±0.3	d3±0.5	d4±0.5	e 最小MM	l2±0.3	l3±0.3	SWh14	Pull-Out FN	オス
AIM5	8	M5	22	8	12.8	10.2	10.2	9	7	30
AIM6	10	M6	25	10	14.8	11.5	12.5	11	8	40
AIM8	13	M8	30	13	19.3	14	16.5	13	11	60
AIM10	16	M10	35	16	24	15.5	20	16	13	80
AIM12	16	M12	35	16	24	15.5	20	16	13	80
AIM14×1.5	19	M14x1.5	45	22	30	21.5	28	20	16	100
AIM14	19	M14	45	22	30	21.5	28	20	16	100
AIM16	19	M16	45	22	30	21.5	28	20	16	100

レース：

Socket: Carbon steel, tensile strength class 5, zinc plated and colorless passivated.
射出成形、PTFE 入り強化ナイロン。 Hardened steel with lubricated ball seat for compact axial articulation.
Stainless option: Stainless steel version available for corrosion-sensitive applications.
Tolerances: a ±0.3 · d3 ±0.5 · d4 ±0.5 · l2 ±0.3 · l3 ±0.3.

備考

Axial layout: AIM is intended for compact axial ball-joint linkage points where pull-out force and packaging size matter.
Thread choice: Match thread d2 and ball diameter d1 to the mating linkage and housing space.
RFQ support: Send target load, mounting direction, finish preference, and annual quantity for selection confirmation.

🍪
