SA-TK / SI-TK Series — Metric Rod Ends

SA-TK & SI-TK Series
Metric 3-Piece Self-Lubricating Rod Ends

Metric Threads · Copper Alloy PTFE Race · Carbon Steel Silver Zinc Plated Body

13

ブランド互換性

13

クロス検索

SA-TK SI-TK series rod end product overview

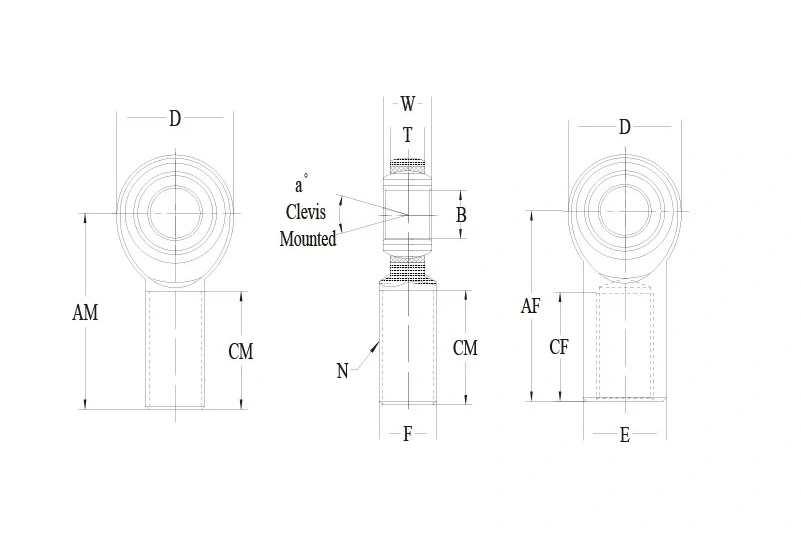

SA-TK SI-TK series metric rod end technical drawing

任意の B

任意の N

B

N

ポリウレタン

TYPE	RH PART NO.	LH PART NO.	Bねじ +0.065 -0.012	Dねじ +0.38 -0.38	N幅 METRIC	Wボール +0.12 -0.12	Tボール +0.13 -0.13	CM / CF長さ +0.40 -0.40	任意の a°長さ +1.00 -1.00	A°REF. 静的長さ	STATIC（ポンド）重量 (KN)	WEIGHT数量 (G)	QTY	ACTION	DETAILS
追加	SA5TK	SAL5TK	5	18.00	M5 X 0.8	8	6.00	33 (AM)	19 (CM)	4	7.5	13
追加	SA6TK	SAL6TK	6	20.00	M6 X 1.0	9	6.75	36 (AM)	22 (CM)	9	9.3	20
追加	SI5TK	SIL5TK	5	18.00	M5 X 0.8	8	6.00	27 (AF)	10 (CF)	4	7.5	18
追加	SI6TK	SIL6TK	6	20.00	M6 X 1.0	9	6.75	30 (AF)	12 (CF)	9	9.3	27

レース：

射出成形、PTFE 入り強化ナイロン。 52100 bearing steel, precision ground, heat treated, and hard chrome plated for long-wear articulation.
4130 クロモリ鋼、熱処理、硬質クロムめっき。 Copper alloy race with PTFE lining for durable self-lubricating service in metric linkage assemblies.
スタッド構成の選択肢： Carbon steel body with silver zinc plating for corrosion resistance and practical OEM replacement service.

備考

Stud configurations available: add S to the suffix, for example SA12TK-S.
Inch size available: check the 射出成形ナイロン series for inch-size equivalents.
Yellow zinc plating optional when an alternate finish is required for the application.

🍪
